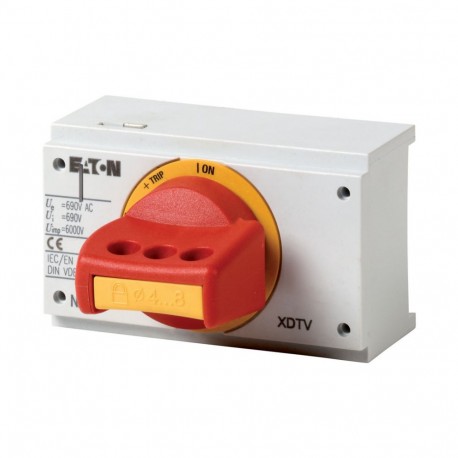

NZM1-XDTVR 260142 Y7-260142 EATON ELECTRIC Rotary handle, red-yellow, lockable on the handle, size 1
NZM1-XDTVR
260142
Y7-260142
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A red-yellow rotary handle kit, designated as NZM1-XDTVR 260142 Y7-260142 EATON ELECTRIC Rotary handle, red-yellow, lockable on the handle, size 1, provides emergency-compliant manual control for main disconnect switches. These lockable handles are commonly specified in machine safety circuits to prevent unauthorized access and ensure visible status indication. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Red
- Suitable for emergency stop (EF001433): Yes
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
IEC
RoHS conform
UL listed
CSA (Class No. 1437-01)
CSA (File No. 22086)
UL (Category Control Number DIHS)
CE marking
CSA certified
UL489
UL (File No. E140305)
CSA-C22.2 No. 5-09
Product specifications
Lockable
Emergency stop
Switch disconnector
Door interlock can only be switched ON when the door is closed
Door can be opened in OFF
Door interlock can be defeated from the outside using a 1 mm pin
Door interlock in ON position
Lockable on the 0 position on the handle using up to 3 padlocks
4X. 12
