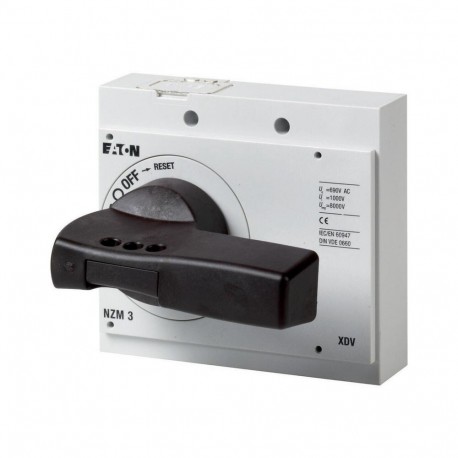

EATON - MOELLER NZM3-XDV NZM3-XDV 260129 Y7-260129 EATON ELECTRIC Rotary handle, lockable, size 3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM3-XDV 260129 Y7-260129 EATON ELECTRIC Rotary handle, lockable, size 3

NZM3-XDV

260129

Y7-260129

EATON - MOELLER

1 Pcs.

Rotary handle, lockable, size 3 NZM3-XDV Eaton Moeller series NZM - Molded Case Circuit Breaker. Rotary handle, lockable, size 3 Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Note: complete with rotary drive, can be combined with insulating surround, MODAN handle position detection by wire release can be retrofitted. Default, black/grey. Lockable on the 0 position on the switch using up to 3 padlocks. Can be used for: NZM3(-4), PN3(-4), N(N/O)3(-4)

Automation > Handle for power circuit breaker
Circuit Breakers NZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller series NZM operating element
Catalog Number
260129
Model Code
NZM3-XDV
EAN
4015082601294
Product Length/Depth
108 mm
Product Height
124 mm
Product Width
140 mm
Product Weight
0.881 kg
Compliances
IEC
UL/CSA
RoHS conform
Certifications
UL489
CE marking
UL (Category Control Number DIHS)
UL listed
CSA (File No. 22086)
CSA-C22.2 No. 5-09
UL (File No. E140305)
CSA (Class No. 1437-01)
IEC60947
CSA certified

Product specifications

Type
Special features
  • Complete with rotary drive
  • Can be combined with insulating surround
  • MODAN handle position detection by wire release can be retrofitted
  • Makes it possible to operate the switch with a rotational movement and provides locking facilities
Features
Lockable
Standard: black / gray
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Black
Fitted with:
Padlock
Frame
NZM3
Used with
NZM3(-4), PN3(-4), N(S)3(-4)
Activation type
Rotary handle
Suitable for
Switch disconnector
Power circuit breaker
Locking facility
Lockable on the 0 position on the switch using up to 3 padlocks
Degree of protection / NEMA enclosure type
IP20
4X. 12

ETIM for 260129 Low-voltage industrial controls and switchgear (EC000229)
Feature Name Feature Value
With restart blockage (EF004054) No
With key lock (EF026057) No
Padlock locking (EF001163) Yes
Colour (EF000007) Black
Suitable for emergency stop (EF001433) No
With extension shaft (EF001434) No
Suitable for power circuit breaker (EF005863) Yes
Suitable for switch disconnector (EF007252) Yes
Degree of protection (NEMA) (EF011959) 4X, 12

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
