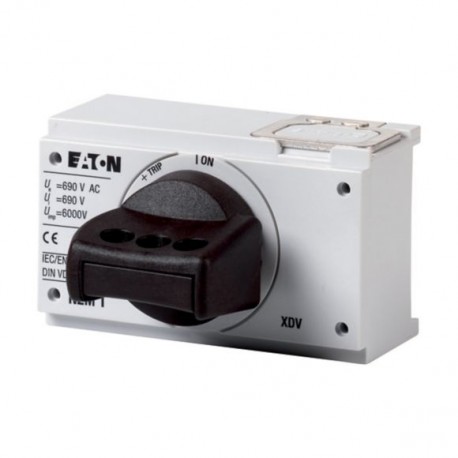

NZM1-XDV 260125 Y7-260125 EATON ELECTRIC Rotary handle, lockable, size 1
NZM1-XDV
260125
Y7-260125
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as an external interface for protective devices, the NZM1-XDV 260125 Y7-260125 EATON ELECTRIC Rotary handle, lockable, size 1 allows operators to manually switch power circuits from outside a closed control cabinet. These lockable handles are widely deployed in commercial and industrial electrical setups to ensure secure operation and safety compliance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- With restart blockage (EF004054): No
- With key lock (EF026057): No
- Padlock locking (EF001163): Yes
- Colour (EF000007): Black
- Suitable for emergency stop (EF001433): No
- With extension shaft (EF001434): No
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for switch disconnector (EF007252): Yes
- Degree of protection (NEMA) (EF011959): 4X, 12
More info
▲General specifications
UL/CSA
RoHS conform
UL489
UL (Category Control Number DIHS)
UL (File No. E140305)
UL listed
CE marking
IEC60947
CSA-C22.2 No. 5-09
CSA certified
CSA (File No. 22086)
Product specifications
- Complete with rotary drive
- Can be combined with insulating surround
- MODAN handle position detection by wire release can be retrofitted
- Makes it possible to operate the switch with a rotational movement and provides locking facilities
Standard: black / gray
Switch disconnector
4X. 12
