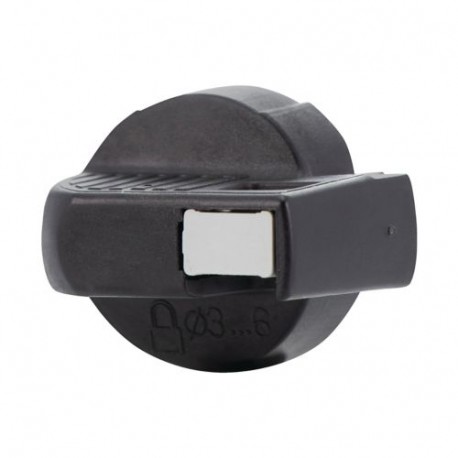

Rotary handle, lockable Lockable rotary knob for PKZ Eaton Moeller® series PKZ0 Rotary handle, lockable AK-PKZ0 Rotary handle, lockable in the “0” position with a padlock strength 3-6.35mm, for locking the motor-protective circuit-breaker frame size PKZM0 and PKZM4 as main switch according to EN 60204

Automation > Handle for power circuit breaker
Circuit Breakers PKZ

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series PKZ0 Accessory Lockable Rotary Handle
Catalog Number
030851
Model Code
AK-PKZ0
EAN
4015080308515
Product Length/Depth
26 mm
Product Height
32 mm
Product Width
26 mm
Product Weight
0.01 kg
Certifications
CSA File No.: 165628
IEC/EN 60947-4-1
UL 508
UL
CSA-C22.2 No. 14
CE
UL Category Control No.: NLRV
CSA
CSA Class No.: 3211-05
UL File No.: E36332
Catalog Notes
Cannot be used in combination with VHI20-PKZ0.

Features & Functions

Color
Black
Features
Lockable
Functions
For locking motor-protective circuit-breakers PKZM0, PKZM4 and PKE as a main switch in compliance with EN 60204
Locking facility
Lockable in the 0 (Off) position (with padlock)
Thickness
6.35 mm

General

Product Category
Accessories
Suitable for
Switch disconnector
Used with
P-SOL and PKZ-SOL

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 030851 Low-voltage industrial controls and switchgear (EC000229)
Feature Name Feature Value
With restart blockage (EF004054) No
With key lock (EF026057) No
Padlock locking (EF001163) No
Colour (EF000007) Black
Suitable for emergency stop (EF001433) No
With extension shaft (EF001434) No
Suitable for power circuit breaker (EF005863) No
Suitable for switch disconnector (EF007252) Yes
Degree of protection (NEMA) (EF011959) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
