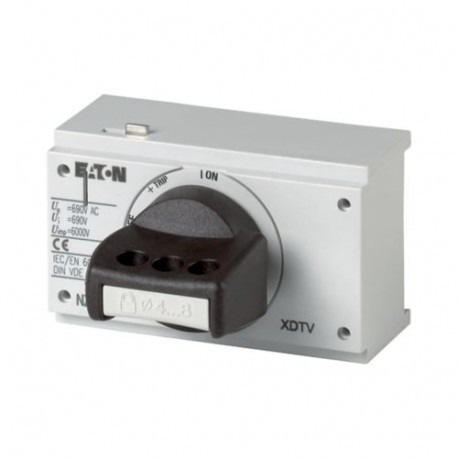

NZM1-XDTV-NA 271453 Y7-271453 EATON ELECTRIC Rotary handle, black, lockable on the handle, NA type
NZM1-XDTV-NA
271453
Y7-271453
EATON - MOELLER
1 Pcs.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZM1-XDTV-NA is a lockable black rotary handle designed for direct mounting and secure actuation of molded case circuit breakers. Panel builders incorporate these handles onto control cabinet doors to provide safe manual switching capabilities for operators in industrial settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: NZM1-XDTV-NA
- Catalogue code: 271453
- Catalogue title: NZM1-XDTV-NA 271453 Y7-271453 EATON ELECTRIC Rotary handle, black, lockable on the handle, NA type
- Product description: General specifications Product Name Eaton Moeller series NZM operating element NA Catalog Number 271453 Model Code NZM1-XDTV-NA EAN 4015082714536 Product Length/Depth 80 mm Product Height 54 mm Product Width 90 mm Produc
- Manufacturer summary: Rotary handle, black, lockable on the handle, NA type NZM1-XDTV-NA Eaton Moeller series NZM - Molded Case Circuit Breaker. Rotary handle, black, lockable on the handle, for NZM1, NA type
More info
▲General specifications
IEC
RoHS conform
CSA (File No. 22086)
UL489
IEC60947
CSA-C22.2 No. 5-09
CSA certified
UL (File No. E140305)
CE marking
UL listed
UL (Category Control Number DIHS)
Product specifications
Standard: black / gray
Switch disconnector
Door interlock cannot be combined with mechanical locking
Door interlock in ON position
Door interlock not defeated in the locked OFF and ON positions
Door interlock can be defeated from the outside using a 1 mm pin
Door opens only with active rotation beyond the 0 position
Can also be modified in I position
Lockable on the 0 position on the handle using up to 3 padlocks
4X. 12
