View larger
Images are for illustrative purposes only. Please refer to data sheet for details

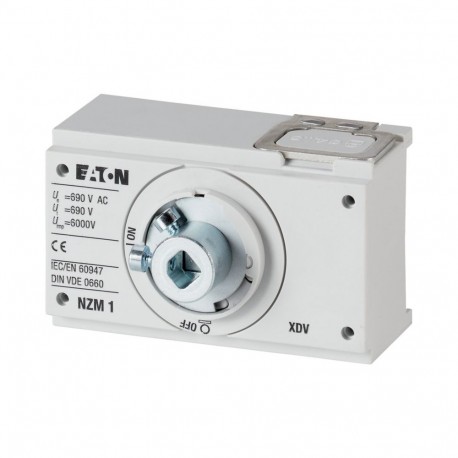

NZM1-XDV-MODAN 285763 Y7-285763 EATON ELECTRIC Rotary drive, Modan door coupling, rotary handle, size 1
NZM1-XDV-MODAN
285763
Y7-285763
EATON - MOELLER
1 Pcs.
Rotary drive, Modan door coupling, rotary handle, size 1
NZM1-XDV-MODAN
Eaton Moeller series NZM - Molded Case Circuit Breaker. Rotary drive, Modan door coupling, rotary handle, size 1
Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple.
Automation > Handle for power circuit breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series NZM operating element
Catalog Number
285763
Model Code
NZM1-XDV-MODAN
EAN
4015082857639
Product Length/Depth
60 mm
Product Height
55 mm
Product Width
90 mm
Product Weight
0.131 kg
Compliances
IEC
UL/CSA
RoHS conform
UL/CSA
RoHS conform
Certifications
CSA Certified
Product specifications
Type
Special features
Makes it possible to operate the switch with a rotational movement and provides locking facilities
Features
Standard: black / gray
Frame
NZM1
Used with
NZM1(-4), PN1(-4), N(S)1(-4)
Activation type
Rotary handle
Locking facility
Prepared for interlocking with MODAN drawer
Degree of protection / NEMA enclosure type
IP20
| Feature Name | Feature Value |
|---|---|
| With restart blockage (EF004054) | No |
| With key lock (EF026057) | No |
| Padlock locking (EF001163) | No |
| Suitable for emergency stop (EF001433) | No |
| With extension shaft (EF001434) | No |
| Suitable for power circuit breaker (EF005863) | No |
| Suitable for switch disconnector (EF007252) | No |
