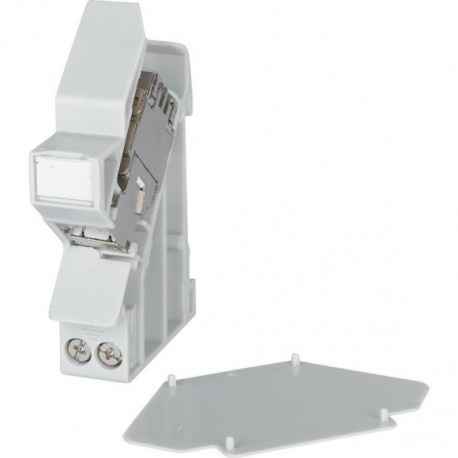

EATON - MOELLER E-DAT-RJ45 E-DAT-RJ45 178973 Y7-178973 EATON ELECTRIC RJ45 data module for mounting rail socket insulated View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E-DAT-RJ45 178973 Y7-178973 EATON ELECTRIC RJ45 data module for mounting rail socket insulated

E-DAT-RJ45

178973

Y7-178973

EATON - MOELLER

1 Pcs.

RJ45 data module for mounting rail; socket; insulated E-DAT-RJ45 Eaton xComfort KLV LV systems Final Distribution Boards. RJ45 data module for mounting rail, socket, insulated data module, accessory, KLV, KLV media DBO

Connectors > Modular connector
Compact Distribution Boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number E-DAT-RJ45 (178973) is an RJ45 data module engineered for secure mounting on standard DIN rails within control cabinets and electrical enclosures. This shielded module allows seamless integration of Ethernet connections directly alongside power distribution components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Bus (jack)
  • Type of connector (EF002935): RJ45 8(8)
  • Screened (EF000881): Yes
  • Category (EF001619): 6
  • Special tool necessary (EF008058): Yes
  • Suitable for round cable (EF002913): Yes
  • Suitable for flat cable (EF002914): Yes
  • Suitable for litz wire conductor (EF002915): Yes
  • Transparent (EF006243): No
  • Compatible with Grade2TV according to XP-C 90-483 (EFFR0001): No
  • Compatible with Grade3TV according to XP-C 90-483 (EFFR0002): No

More info

▲

General specifications

Product Name
Eaton xComfort KLV data module
Catalog Number
178973
Model Code
E-DAT-RJ45
EAN
4015081742905
Product Length/Depth
100 mm
Product Height
25 mm
Product Width
150 mm
Product Weight
0.07 kg
Compliances
RoHS conform

Product specifications

Features
Screened
Accessories required
Special tool necessary
Used with
Data module
KLV multimedia
Accessory consideration
KLV Accessories
Type
Accessory/spare part type
KLV
Category
6
Color
Other
Connector type
RJ45 8(8)
Suitable for
Litz wire conductor
Flat Cable
Round cable
Connection type
Other
Model
Bus (jack)
Wire size (AWG) - max
0
Wire size (AWG) - min
0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
