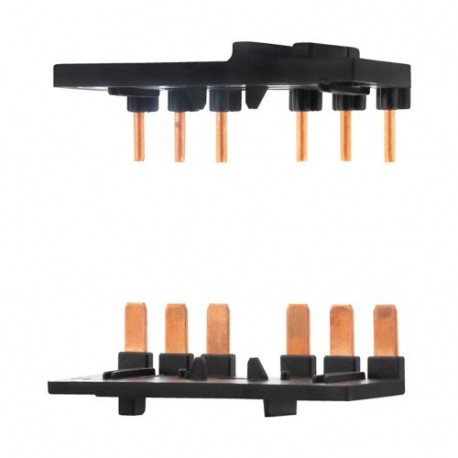

DILM32-XRL 283109 Y7-283109 EATON ELECTRIC Reversing wiring kit, DILM1732
DILM32-XRL
283109
Y7-283109
EATON - MOELLER
1 Pcs.
Automation > Wiring set for power circuit breaker
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller DILM32-XRL is a reversing wiring kit engineered to facilitate the mechanical and electrical interconnection of contactors for motor reversing applications. Reversing wiring modules simplify complex bridge connections in power control panels, ensuring correct phase inversion and reliable switching performance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for number of poles (EF001589): 3
- Model (EF000010): Reversing switching
More info
▲General specifications
CSA
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 012528
UL 508
CSA-C22.2 No. 14-05
IEC/EN 60947-4-1
CSA Class No.: 3211-04
CE
