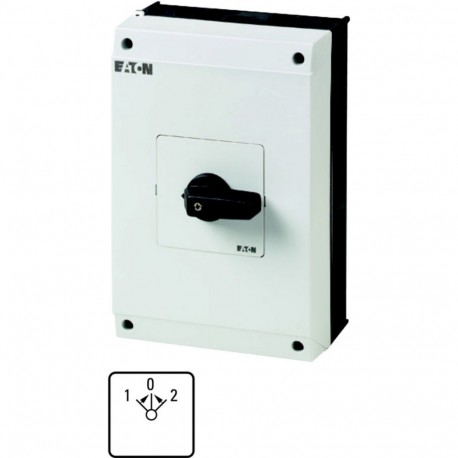

T5B-3-8228/I4 207225 Y7-207225 EATON ELECTRIC Reversing switches, Contacts: 5, 63 A, front plate: 1 0 2, 45 ..
T5B-3-8228/I4
207225
Y7-207225
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The T5B-3-8228/I4 manufactured by Eaton Moeller is a reversing switch designed for heavy-duty motor control and circuit switching in industrial environments. Such devices allow operators to manually reverse motor rotation while ensuring secure isolation through built-in off positions in heavy machinery applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reversing switch
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): Yes
- Rated permanent current Iu (EF001389): 63 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): Yes
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
CSA Class No.: 3211-05
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60204
CSA
CE
UL
