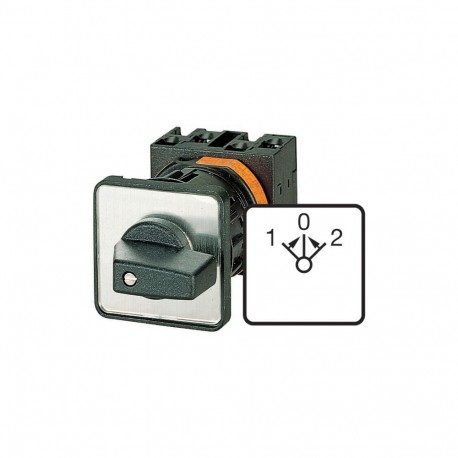

EATON - MOELLER T5B-3-8228/E T5B-3-8228/E 092374 Y7-92374 EATON ELECTRIC Reversing switches, Contacts: 5, 63 A, front plate: 1 0 2, 45 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-3-8228/E 092374 Y7-92374 EATON ELECTRIC Reversing switches, Contacts: 5, 63 A, front plate: 1 0 2, 45 °,..

T5B-3-8228/E

092374

Y7-92374

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 5, 63 A, front plate: 1>0<2, 45 °, momentary, flush mounting Switch Inverter 5 poles 63 A Indicator plate: 1>0<2 45° With Eaton Moeller® series T5B Reversing switches, T5B, 63 A, flush mounting, 3 contact unit(s), Contacts: 5, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 1>0<2, Design number 8228 Reversing switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 1>0<2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Reversing switch
Catalog Number
092374
Model Code
T5B-3-8228/E
EAN
4015080923749
Product Length/Depth
124 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.59 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CSA
CSA Class No.: 3211-05
UL
IEC/EN 60947-3
UL Category Control No.: NLRV
IEC/EN 60204
IEC/EN 60947
CSA File No.: 012528
VDE 0660
CE
CSA-C22.2 No. 94
UL 60947-4-1
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 092374 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reversing switch
Number of poles (EF001391) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) Yes
Rated permanent current Iu (EF001389) 63 A
Rated operation current Ie at AC-3, 400 V (EF001392) 41 A
Rated operation power at AC-3, 400 V (EF001364) 22 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
