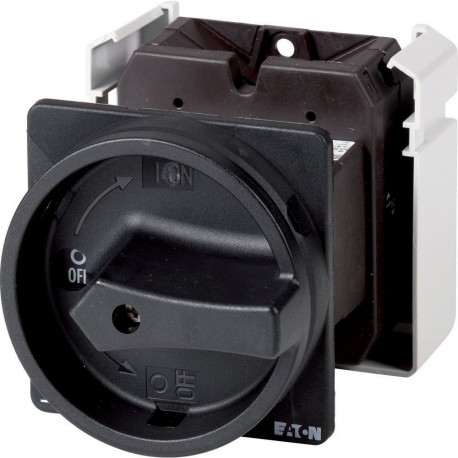

EATON - MOELLER T5B-2-SOND*/V/SVB-SW T5B-2-SOND*/V/SVB-SW 908115 Y7-908115 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, 2 contac.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-2-SOND*/V/SVB-SW 908115 Y7-908115 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, 2 contac..

T5B-2-SOND*/V/SVB-SW

908115

Y7-908115

EATON - MOELLER

10 Pcs.

Non-standard switch, T5B, 63 A, rear mounting, 2 contact unit(s) T5B-2-SOND*/V/SVB-SW Eaton Moeller® series T5B Non-standard switch, T5B, 63 A, rear mounting, 2 contact unit(s), STOP function, With black rotary handle and locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5B, Stop Function: STOP function, With black rotary handle and locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for rear mounting applications, the Eaton Moeller T5B-2-SOND*/V/SVB-SW 908115 Y7-908115 EATON ELECTRIC Non-standard switch handles demanding load-breaking tasks.

Industrial machinery often utilizes custom-configured rotary switches to manage specific operational modes and safely disconnect power routes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Non-standard switch
Catalog Number
908115
Model Code
T5B-2-SOND*/V/SVB-SW
Product Length/Depth
155 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.525 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
