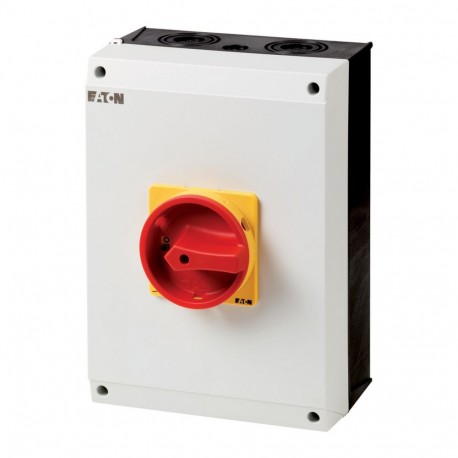

EATON - MOELLER T5-3-SOND*/I5/SVB T5-3-SOND*/I5/SVB 207531 Y7-207531 EATON ELECTRIC Non-standard switch, T5, 100 A, surface mounting, 3 contac.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-3-SOND*/I5/SVB 207531 Y7-207531 EATON ELECTRIC Non-standard switch, T5, 100 A, surface mounting, 3 contac..

T5-3-SOND*/I5/SVB

207531

Y7-207531

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, surface mounting, 3 contact unit(s) T5-3-SOND*/I5/SVB Eaton Moeller® series T5 Non-standard switch, T5, 100 A, surface mounting, 3 contact unit(s), Emergency switching off function, With red rotary handle and yellow locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: customized version according to form, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Surface mounting non-standard switch Eaton Moeller T5-3-SOND*/I5/SVB serves as a robust switching device for controlling motors, disconnecting machinery, and isolating electrical circuits during maintenance. Such manual disconnects are essential in industrial manufacturing environments to prevent accidental energization. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
207531
Model Code
T5-3-SOND*/I5/SVB
Product Length/Depth
280 mm
Product Height
204 mm
Product Width
200 mm
Product Weight
1.906 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
