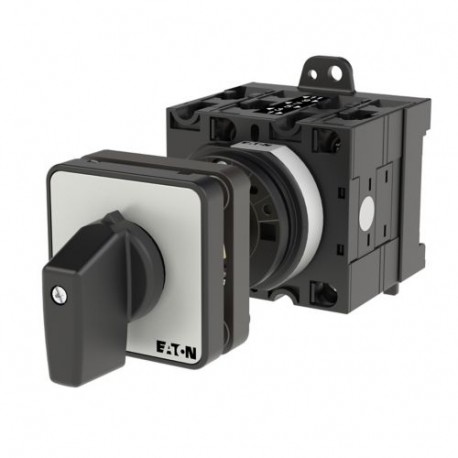

EATON - MOELLER T3-3-8228/Z T3-3-8228/Z 004911 Y7-4911 EATON ELECTRIC Reversing switches, Contacts: 5, 32 A, front plate: 1 0 2, 45 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8228/Z 004911 Y7-4911 EATON ELECTRIC Reversing switches, Contacts: 5, 32 A, front plate: 1 0 2, 45 °, m..

T3-3-8228/Z

004911

Y7-4911

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 5, 32 A, front plate: 1>0<2, 45 °, momentary, rear mounting Switch Inverter 5 poles 32 A Indicator plate: 1>0<2 45° W Eaton Moeller® series T3 Reversing switches, T3, 32 A, rear mounting, 3 contact unit(s), Contacts: 5, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 1>0<2, Design number 8228 Reversing switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 1>0<2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-3-8228/Z reversing switches offer heavy-duty manual switching for industrial motor applications requiring frequent directional adjustments. They safely interrupt and redirect currents within automated production lines and machinery control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reversing switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing switch
Catalog Number
004911
Model Code
T3-3-8228/Z
EAN
4015080049111
Product Length/Depth
144 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.237 kg
Certifications
IEC/EN 60947-3
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA
UL File No.: E36332
CSA-C22.2 No. 94
CE
CSA File No.: 012528
UL Category Control No.: NLRV
VDE 0660
CSA Class No.: 3211-05
UL 60947-4-1
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
