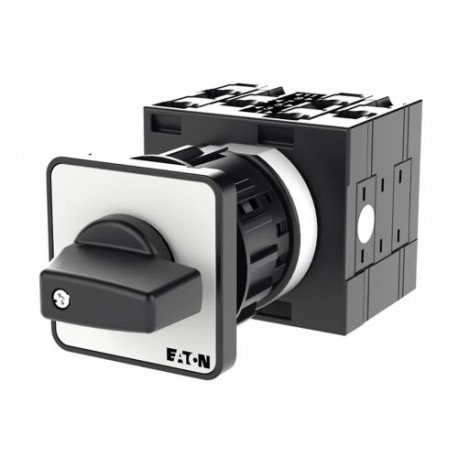

EATON - MOELLER T3-3-8228/EZ T3-3-8228/EZ 000695 Y7-695 EATON ELECTRIC Reversing switches, Contacts: 5, 32 A, front plate: 1 0 2, 45 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8228/EZ 000695 Y7-695 EATON ELECTRIC Reversing switches, Contacts: 5, 32 A, front plate: 1 0 2, 45 °, m..

T3-3-8228/EZ

000695

Y7-695

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 5, 32 A, front plate: 1>0<2, 45 °, momentary, centre mounting Inverter switch; 5 poles; 32 A; Indicator plate: 1>0<2; 45 °; With Eaton Moeller® series T3 Reversing switches, T3, 32 A, center mounting, 3 contact unit(s), Contacts: 5, 45 °, momentary, With 0 (Off) position, with spring-return from both directions to 0, 1>0<2, Design number 8228 Reversing switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions to 0, front plate: 1>0<2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller reversing switch part number T3-3-8228/EZ provides manual rotational direction control for industrial electric motors through reliable phase switching. These control devices are standard in machinery where operators need safe, repeatable forward and reverse cycles. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reversing switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing switch
Catalog Number
000695
Model Code
T3-3-8228/EZ
EAN
4015080006954
Product Length/Depth
124 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.233 kg
Certifications
CSA File No.: 012528
CE
IEC/EN 60947
VDE 0660
UL 60947-4-1
CSA-C22.2 No. 94
UL
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA
UL Category Control No.: NLRV
IEC/EN 60204
UL File No.: E36332
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
