> EATON - MOELLER > Disconnectors and Cam Switches > 018528

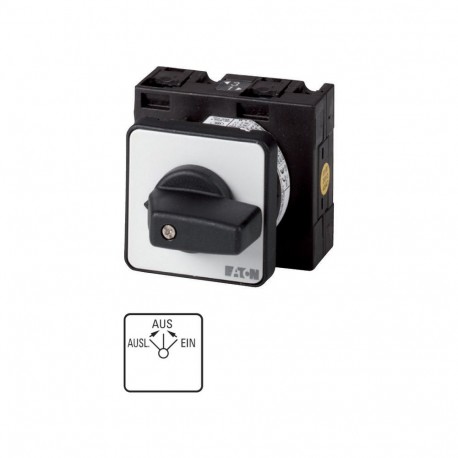

EATON - MOELLER T3-2-8515/EZ T3-2-8515/EZ 018528 Y7-18528 EATON ELECTRIC Universal control switches, Contacts: 4, 32 A, front plate: AUSL.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-8515/EZ 018528 Y7-18528 EATON ELECTRIC Universal control switches, Contacts: 4, 32 A, front plate: AUSL..

T3-2-8515/EZ

018528

Y7-18528

EATON - MOELLER

1 Pcs.

Universal control switches, Contacts: 4, 32 A, front plate: AUSL>Aus Universal Control Switch 4-Pole 32 A Indicator Plate: Eaton Moeller® series T3 Universal control switches, T3, 32 A, center mounting, 2 contact unit(s), Contacts: 4, 45 °, momentary, With spring-return from both directions to OFF, AUSL>Aus Universal control switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: momentary, With spring-return from both directions to OFF, 2 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: AUSL>Aus

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Universal control switch
Catalog Number
018528
Model Code
T3-2-8515/EZ
EAN
4015080185284
Product Length/Depth
113 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.179 kg
Certifications
IEC/EN 60947
CSA
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA File No.: 012528
VDE 0660
UL File No.: E36332
CSA-C22.2 No. 94
IEC/EN 60204
UL
CSA Class No.: 3211-05
IEC/EN 60947-3
UL Category Control No.: NLRV
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 018528 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Group switch
Number of poles (EF001391) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 32 A
Number of switch positions (EF000231) 3
With zero (off) position (EF001416) No
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 48x48 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
