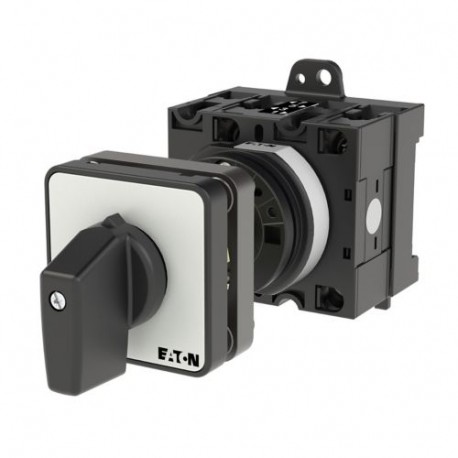

EATON - MOELLER T3-2-8400/Z T3-2-8400/Z 095060 Y7-95060 EATON ELECTRIC Reversing switches, Contacts: 4, 32 A, front plate: 1-0-2, 45 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-8400/Z 095060 Y7-95060 EATON ELECTRIC Reversing switches, Contacts: 4, 32 A, front plate: 1-0-2, 45 °, ..

T3-2-8400/Z

095060

Y7-95060

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 4, 32 A, front plate: 1-0-2, 45 °, maintained, rear mounting Switch Inverter 4 poles 32 A Indicator plate: 1-0-2 45° Eaton Moeller® series T3 Reversing switches, T3, 32 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, maintained, With 0 (Off) position, 1-0-2, Design number 8400 Reversing switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller reversing switch (T3-2-8400/Z) is a rugged rotary control device implemented in industrial automation to manually invert the rotational direction of electric motors. These versatile switches integrate seamlessly into control panels to govern complex mechanical routines safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reversing switch
  • Number of poles: 2
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 32 A
  • Rated operation current Ie at AC-3, 400 V: 23.7 A
  • Rated operation power at AC-3, 400 V: 12 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: Yes
  • Suitable for front mounting: No
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: Yes
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing switch
Catalog Number
095060
Model Code
T3-2-8400/Z
EAN
4015080950608
Product Length/Depth
133 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.195 kg
Certifications
IEC/EN 60204
IEC/EN 60947
UL
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA
CSA File No.: 012528
CE
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL 60947-4-1
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
