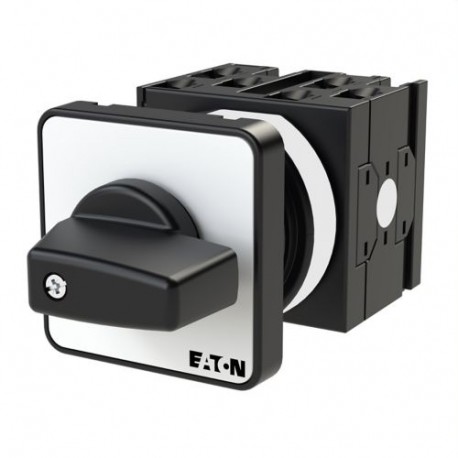

EATON - MOELLER T0-3-8426/E T0-3-8426/E 000982 Y7-982 EATON ELECTRIC Cam switch, Ie: 20A to 440V AC-21 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-3-8426/E 000982 Y7-982 EATON ELECTRIC Cam switch, Ie: 20A to 440V AC-21

T0-3-8426/E

000982

Y7-982

EATON - MOELLER

1 Pcs.

Cam switch, Ie: 20A to 440V AC-21 Auxiliary winding switch 6 poles 20 A Indicator plate: Eaton Moeller® series T0 Auxiliary winding switch, T0, 20 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, with spring-return from both directions to 0, 2-START>0 Auxiliary winding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, with spring-return from both directions to 0, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 2-START>0

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for precise directional control, the Eaton Moeller T0-3-8426/E cam switch operates as a multi-position reverser within complex electrical control loops. Rotary cam switches are frequently installed in industrial panels to direct motor rotation, route signals, or change circuit configurations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 5
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Auxiliary winding switch
Catalog Number
000982
Model Code
T0-3-8426/E
EAN
4015080009825
Product Length/Depth
95 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.121 kg
Certifications
CSA-C22.2 No. 94
CSA File No.: 012528
UL Category Control No.: NLRV
VDE 0660
CE
UL File No.: E36332
CSA Class No.: 3211-05
UL 60947-4-1
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
CSA
CSA-C22.2 No. 60947-4-1-14
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
