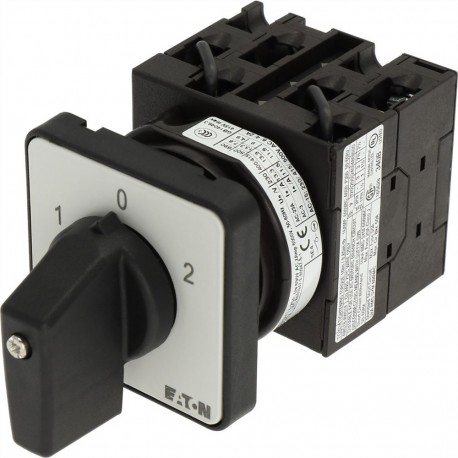

T0-3-8401/E 091047 Y7-91047 EATON ELECTRIC Reversing switches, Contacts: 5, 20 A, front plate: 1-0-2, 60 °, ..
T0-3-8401/E
091047
Y7-91047
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller reversing switch, part number T0-3-8401/E, enables manual direction control of electric motors by swapping phase connections safely within industrial automation architectures. Cam switches of this variety offer robust mechanical performance for frequent switching operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reversing switch
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CSA-C22.2 No. 94
IEC/EN 60204
UL
IEC/EN 60947
UL Category Control No.: NLRV
CSA File No.: 012528
CSA Class No.: 3211-05
CE
UL 60947-4-1
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CSA
VDE 0660
