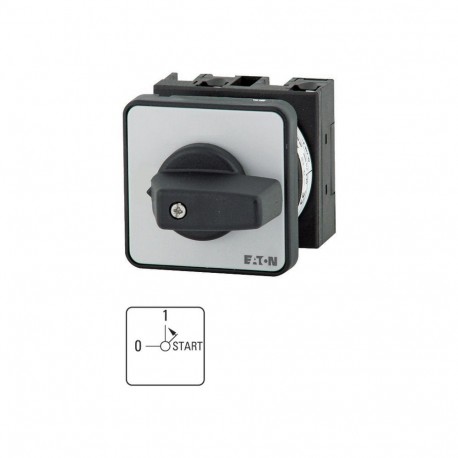

T0-2-8425/E 011823 Y7-11823 EATON ELECTRIC Auxiliary winding switch, Contacts: 3, 20 A, front plate: 0-1 STA..
T0-2-8425/E
011823
Y7-11823
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller auxiliary winding switch (part number T0-2-8425/E) controls multi-speed motor windings and specialized transformer circuits in industrial machinery. Such switching devices allow technicians to manage complex operational stages safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Reverser
- Number of poles (EF001391): 2
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Number of switch positions (EF000231): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 48x48 mm
More info
▲General specifications
CSA Class No.: 3211-05
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60204
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
UL
UL File No.: E36332
UL 60947-4-1
CE
CSA File No.: 012528
IEC/EN 60947-3
CSA
