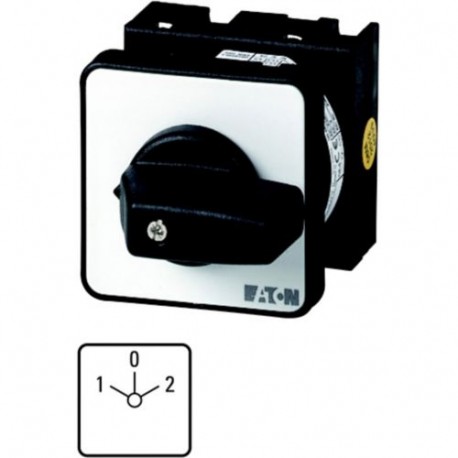

T0-2-8400/E 053079 Y7-53079 EATON ELECTRIC Reversing switches, Contacts: 4, 20 A, front plate: 1-0-2, 45 °, ..
T0-2-8400/E
053079
Y7-53079
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A reversing switch such as the Eaton Moeller T0-2-8400/E provides dependable switching control for dual-circuit or reversing motor applications. Engineers specify these devices for reliable manual operation in control cabinets requiring secure front-panel integration. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reversing switch
- Number of poles (EF001391): 2
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CSA Class No.: 3211-05
IEC/EN 60947-3
IEC/EN 60204
VDE 0660
CSA-C22.2 No. 94
UL
IEC/EN 60947
UL 60947-4-1
CE
UL Category Control No.: NLRV
CSA File No.: 012528
CSA
CSA-C22.2 No. 60947-4-1-14
