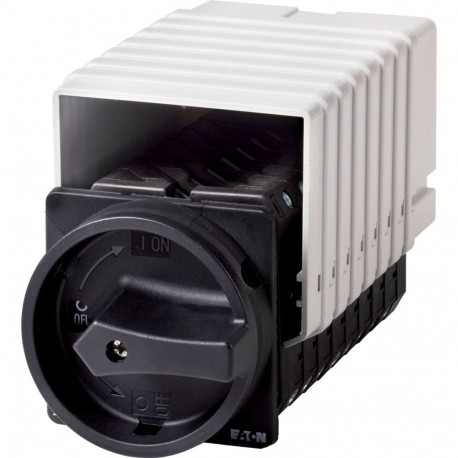

EATON - MOELLER T5B-8-SOND*/EA/SVB-SW T5B-8-SOND*/EA/SVB-SW 908113 Y7-908113 EATON ELECTRIC Non-standard switch, T5B, 63 A, flush mounting, 8 cont.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-8-SOND*/EA/SVB-SW 908113 Y7-908113 EATON ELECTRIC Non-standard switch, T5B, 63 A, flush mounting, 8 cont..

T5B-8-SOND*/EA/SVB-SW

908113

Y7-908113

EATON - MOELLER

10 Pcs.

Non-standard switch, T5B, 63 A, flush mounting, 8 contact unit(s) T5B-8-SOND*/EA/SVB-SW Eaton Moeller® series T5B Non-standard switch, T5B, 63 A, flush mounting, 8 contact unit(s), STOP function, With black rotary handle and locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5B, Stop Function: STOP function, With black rotary handle and locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 8 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

T5B-8-SOND*/EA/SVB-SW 908113 Y7-908113 EATON ELECTRIC Non-standard switch, T5B, 63 A, flush mounting, 8 cont.. by Eaton Moeller is a versatile non-standard rotary switch configured for customized circuit control and power routing tasks within control panels. Industrial engineers typically rely on multi-contact switches of this nature to manually sequence complex operational modes or switch multiple poles concurrently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 500 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Non-standard switch
Catalog Number
908113
Model Code
T5B-8-SOND*/EA/SVB-SW
Product Length/Depth
239 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.515 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
