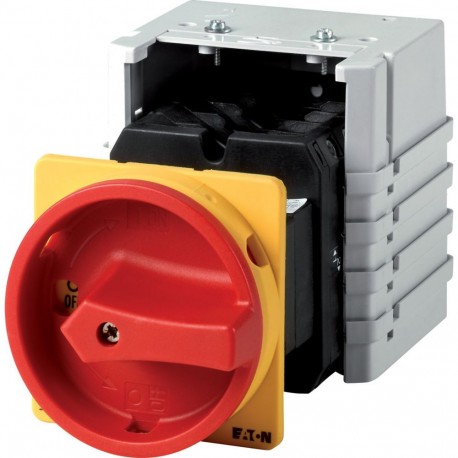

EATON - MOELLER T5B-5-SOND*/V/SVB T5B-5-SOND*/V/SVB 907954 Y7-907954 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, 5 contact u.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-5-SOND*/V/SVB 907954 Y7-907954 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, 5 contact u..

T5B-5-SOND*/V/SVB

907954

Y7-907954

EATON - MOELLER

10 Pcs.

Non-standard switch, T5B, 63 A, rear mounting, 5 contact unit(s) T5B-5-SOND*/V/SVB Eaton Moeller® series T5B Non-standard switch, T5B, 63 A, rear mounting, 5 contact unit(s), Emergency switching off function, With red rotary handle and yellow locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5B, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A T5B-5-SOND*/V/SVB 907954 Y7-907954 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, 5 contact u.. is a specialized rotary control switch utilized in industrial control panels to manage complex switching configurations and load paths. Engineers deploy such devices within electrical enclosures to route signals, sequence operational modes, or disconnect specific sub-circuits safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Non-standard switch
Catalog Number
907954
Model Code
T5B-5-SOND*/V/SVB
Product Length/Depth
204 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.93 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
