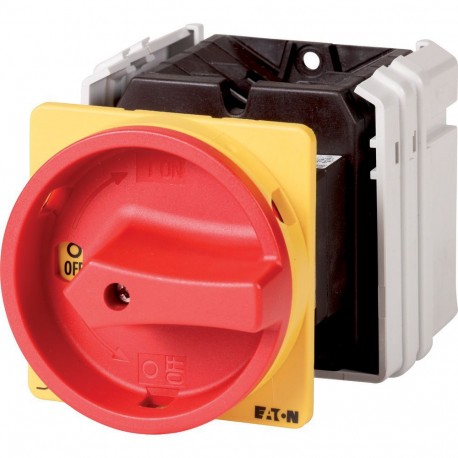

T5B-4-SOND*/V/SVB 907953 Y7-907953 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, 4 contact u..
T5B-4-SOND*/V/SVB
907953
Y7-907953
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for demanding electrical environments, this Eaton Moeller T5B-4-SOND*/V/SVB non-standard switch provides reliable manual disconnection and load-breaking capabilities in heavy industrial machinery. Industrial installations utilize such robust rotary disconnects to manage high current loads securely and protect service personnel. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60947
VDE 0660
IEC/EN 60204
