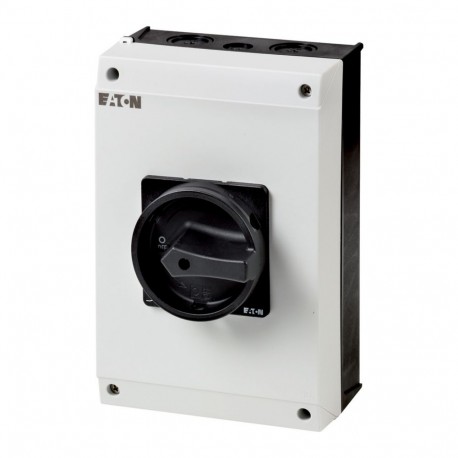

EATON - MOELLER T5B-4-SOND*/I4/SVB-SW T5B-4-SOND*/I4/SVB-SW 207523 Y7-207523 EATON ELECTRIC Non-standard switch, T5B, 63 A, surface mounting, 4 co.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-SOND*/I4/SVB-SW 207523 Y7-207523 EATON ELECTRIC Non-standard switch, T5B, 63 A, surface mounting, 4 co..

T5B-4-SOND*/I4/SVB-SW

207523

Y7-207523

EATON - MOELLER

10 Pcs.

Non-standard switch, T5B, 63 A, surface mounting, 4 contact unit(s) T5B-4-SOND*/I4/SVB-SW Eaton Moeller® series T5B Non-standard switch, T5B, 63 A, surface mounting, 4 contact unit(s), STOP function, With black rotary handle and locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5B, Stop Function: STOP function, With black rotary handle and locking ring, Notes: customized version according to form, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5B-4-SOND*/I4/SVB-SW non-standard switch is a surface-mounted industrial control device built to manage complex switching configurations in manufacturing environments. Enclosed switches of this type offer rugged physical protection while allowing operators to manually direct or isolate electrical loads in harsh operating conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 0

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Non-standard switch
Catalog Number
207523
Model Code
T5B-4-SOND*/I4/SVB-SW
Product Length/Depth
240 mm
Product Height
204 mm
Product Width
160 mm
Product Weight
1.49 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60204
IEC/EN 60947-3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
