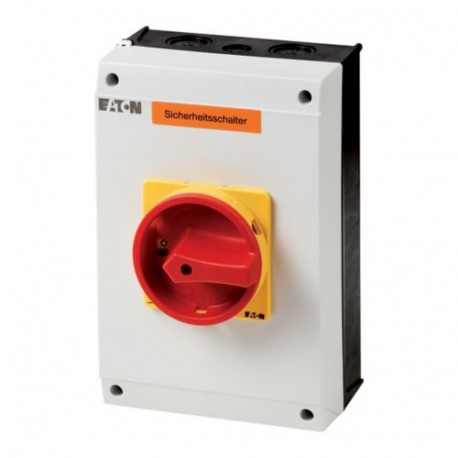

EATON - MOELLER T5B-4-8903/I4-SI T5B-4-8903/I4-SI 207258 Y7-207258 EATON ELECTRIC safety switch,6p+2 N/O,63 A,Emergency-Stop function,Lockabl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-8903/I4-SI 207258 Y7-207258 EATON ELECTRIC safety switch,6p+2 N/O,63 A,Emergency-Stop function,Lockabl..

T5B-4-8903/I4-SI

207258

Y7-207258

EATON - MOELLER

1 Pcs.

safety switch,6p+2 N/O,63 A,Emergency-Stop function,Lockable in position 0 with cover interlock,surface mounting, with warning label „safety switch” T5B-4-8903/I4-SI Eaton Moeller® series T5B Safety switch, T5B, 63 A, 6 pole, 2 N/O, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in position 0 with cover interlock, with warning label „safety switch”

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5B-4-8903/I4-SI serves as a safety switch designed to interrupt multi-phase power supplies and protect operators during machine maintenance. These surface-mounted units are widely implemented in industrial environments requiring rigorous lockout-tagout protocols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T5B-4-8903/I4-SI
  • Catalogue code: 207258
  • Catalogue title: T5B-4-8903/I4-SI 207258 Y7-207258 EATON ELECTRIC safety switch,6p+2 N/O,63 A,Emergency-Stop function,Lockabl..
  • Product description: General specifications Product Name Eaton Moeller® series T5B Safety switch Catalog Number 207258 Model Code T5B-4-8903/I4-SI EAN 4015082072582 Product Length/Depth 152 mm Product Height 175 mm Product Width 125 mm Produ
  • Manufacturer summary: safety switch,6p+2 N/O,63 A,Emergency-Stop function,Lockable in position 0 with cover interlock,surface mounting, with warning label „safety switch” T5B-4-8903/I4-SI Eaton Moeller® series T5B Safety switch, T5B, 63 A, 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Safety switch
Catalog Number
207258
Model Code
T5B-4-8903/I4-SI
EAN
4015082072582
Product Length/Depth
152 mm
Product Height
175 mm
Product Width
125 mm
Product Weight
1.435 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
