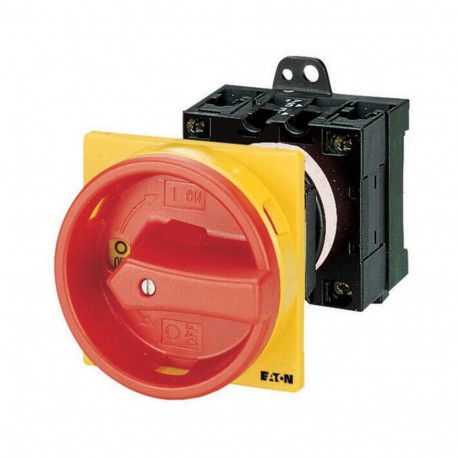

EATON - MOELLER T3-4-SOND*/V/SVB T3-4-SOND*/V/SVB 907894 Y7-907894 EATON ELECTRIC Non-standard switch, T3, 32 A, rear mounting, 4 contact uni.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-4-SOND*/V/SVB 907894 Y7-907894 EATON ELECTRIC Non-standard switch, T3, 32 A, rear mounting, 4 contact uni..

T3-4-SOND*/V/SVB

907894

Y7-907894

EATON - MOELLER

10 Pcs.

Non-standard switch, T3, 32 A, rear mounting, 4 contact unit(s) T3-4-SOND*/V/SVB Eaton Moeller® series T3 Non-standard switch, T3, 32 A, rear mounting, 4 contact unit(s), Emergency switching off function, With red rotary handle and yellow locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-4-SOND*/V/SVB is a non-standard switch configured for specialized control and switching applications within industrial automation. Custom-engineered switches manage complex electrical routing or multi-circuit configurations in bespoke control panels and custom machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Non-standard switch
Catalog Number
907894
Model Code
T3-4-SOND*/V/SVB
Product Length/Depth
156 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.333 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
IEC/EN 60947
