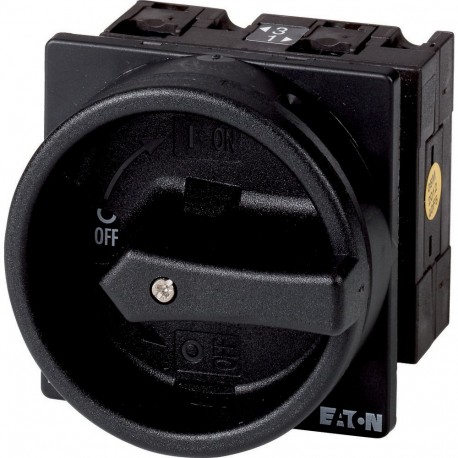

T3-4-SOND*/EA/SVB-SW 908083 Y7-908083 EATON ELECTRIC Non-standard switch, T3, 32 A, flush mounting, 4 contac..
T3-4-SOND*/EA/SVB-SW
908083
Y7-908083
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Utilizing a versatile non-standard switch design, the T3-4-SOND*/EA/SVB-SW 908083 Y7-908083 EATON ELECTRIC Non-standard switch, T3, 32 A, flush mounting, 4 contac.. functions effectively as a control and load isolation device in machinery control cabinets. Industrial panels use comparable components to route signals, manage motor circuits, and disconnect power safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60204
VDE 0660
IEC/EN 60947
