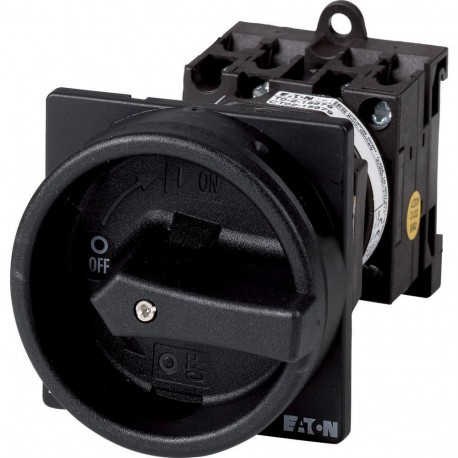

T0-4-SOND*/V/SVB-SW 908057 Y7-908057 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 4 contact ..
T0-4-SOND*/V/SVB-SW
908057
Y7-908057
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller non-standard switch, part number T0-4-SOND*/V/SVB-SW, serves as a reliable mechanical control device used to interrupt or route electrical currents within industrial panel installations. These switches provide manual isolation for machine tool circuits, heating systems, and distribution boards during operation or routine maintenance tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
