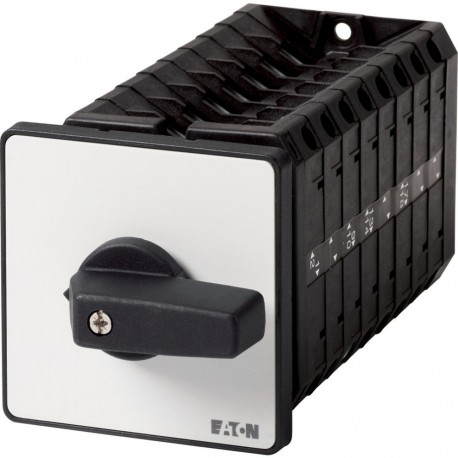

EATON - MOELLER T5B-8-8372/E T5B-8-8372/E 091211 Y7-91211 EATON ELECTRIC Changeoverswitches, Contacts: 16, 63 A, front plate: 1-2, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-8-8372/E 091211 Y7-91211 EATON ELECTRIC Changeoverswitches, Contacts: 16, 63 A, front plate: 1-2, 90 °, ..

T5B-8-8372/E

091211

Y7-91211

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 16, 63 A, front plate: 1-2, 90 °, maintained, flush mounting Switch Commutator 16 poles 63 A Indicator plate: 1-2 90° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, flush mounting, 8 contact unit(s), Contacts: 16, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8372 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 16, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 8 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5B-8-8372/E changeoverswitch provides reliable manual switching for heavy-duty electrical loads and motor control applications. Operators utilize these rotary devices in manufacturing plants and distribution enclosures to manually redirect power circuits or configure operational states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 8
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
091211
Model Code
T5B-8-8372/E
EAN
4015080912118
Product Length/Depth
207 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.265 kg
Certifications
IEC/EN 60947
VDE 0660
CSA
IEC/EN 60204
CE
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-07
UL
CSA-C22.2 No. 94
UL 60947-4-1
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
