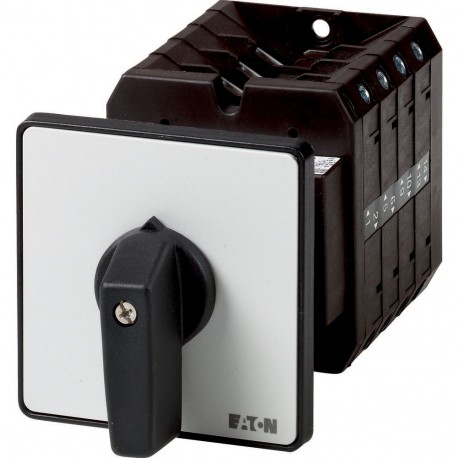

T5B-7-SOND*/Z 907974 Y7-907974 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, 7 contact unit(..
T5B-7-SOND*/Z
907974
Y7-907974
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller non-standard switch (part T5B-7-SOND*/Z) is engineered for specialized control panel routing, custom circuit configurations, and manual load break duties in demanding industrial environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
More info
▲General specifications
IEC/EN 60947-3
IEC/EN 60204
VDE 0660
