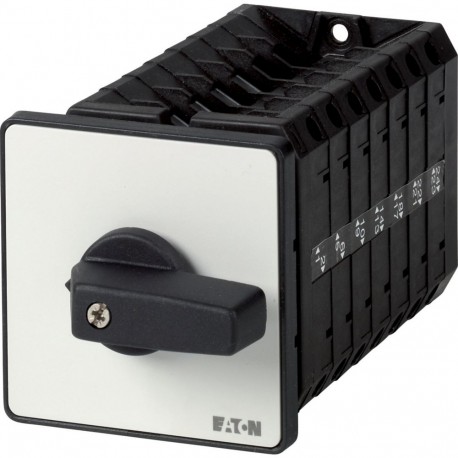

EATON - MOELLER T5B-7-66/E T5B-7-66/E 091539 Y7-91539 EATON ELECTRIC Reversing multi-speed switches, Contacts: 12, 63 A, One tapped win.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-7-66/E 091539 Y7-91539 EATON ELECTRIC Reversing multi-speed switches, Contacts: 12, 63 A, One tapped win..

T5B-7-66/E

091539

Y7-91539

EATON - MOELLER

1 Pcs.

Reversing multi-speed switches, Contacts: 12, 63 A, One tapped winding, 2 speeds, front plate: 2-1-0-1-2, 45 °, maintained, flush mounting, SOND 28 Multi-speed switch with inversion; 12 poles; 63 A; 2-speed; Eaton Moeller® series T5B Reversing multi-speed switches, T5B, 63 A, flush mounting, 7 contact unit(s), Contacts: 12, 45 °, maintained, With 0 (Off) position, 2-1-0-1-2, SOND 28, Design number 66 Reversing multi-speed switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Notes: SOND 28, Contacts: 12, Degree of Protection: Front IP65, Design: flush mounting, switching function: One tapped winding, 2 speeds, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-1-0-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 7 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Reversing multi-speed switch
Catalog Number
091539
Model Code
T5B-7-66/E
EAN
4015080915393
Product Length/Depth
190 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.13 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 94
CSA
UL Category Control No.: NLRV
CSA Class No.: 3211-07
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
IEC/EN 60947-3
IEC/EN 60204
UL
IEC/EN 60947
VDE 0660
CE
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 091539 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reversing Dahlander switch
Number of poles (EF001391) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 63 A
Rated operation current Ie at AC-3, 400 V (EF001392) 41 A
Rated operation power at AC-3, 400 V (EF001364) 37 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
