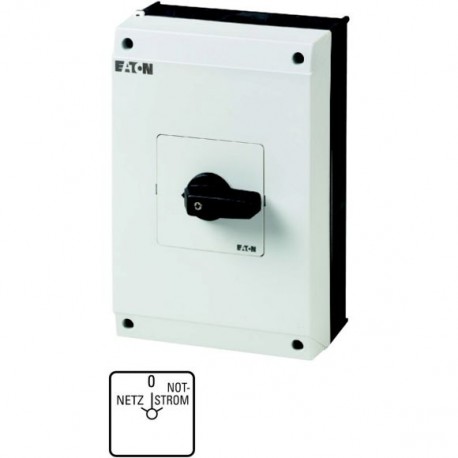

EATON - MOELLER T5B-4-8902/I4 T5B-4-8902/I4 207237 Y7-207237 EATON ELECTRIC Changeoverswitches, Contacts: 8, 63 A, front plate: Netz-0-Not.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-8902/I4 207237 Y7-207237 EATON ELECTRIC Changeoverswitches, Contacts: 8, 63 A, front plate: Netz-0-Not..

T5B-4-8902/I4

207237

Y7-207237

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 63 A, front plate: Netz-0-Notstrom, 45 °, maintained, surface mounting T5B-4-8902/I4 Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, surface mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, Netz-0-Notstrom, Design number 8902 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 8, Degree of Protection: IP65, Design: surface mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: Netz-0-Notstrom, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeover switch (T5B-4-8902/I4) serves as a high-capacity manual switching device used to redirect heavy-duty electrical loads between distinct power sources in industrial plants. Engineers install these components in main distribution panels to manage seamless source transitions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 4
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 63 A
  • Rated operation current Ie at AC-3, 400 V: 41 A
  • Rated operation power at AC-3, 400 V: 22 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: Yes
  • Suitable for front mounting: No
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: Yes
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
207237
Model Code
T5B-4-8902/I4
EAN
4015082072377
Product Length/Depth
240 mm
Product Height
197 mm
Product Width
160 mm
Product Weight
1.435 kg
Certifications
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
UL
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA File No.: 012528
UL 60947-4-1
CE
CSA
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
