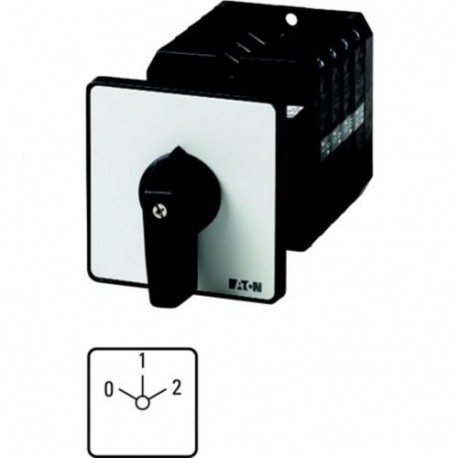

EATON - MOELLER T5B-4-8440/Z T5B-4-8440/Z 092029 Y7-92029 EATON ELECTRIC Multi-speed switches, Contacts: 8, 63 A, One tapped winding, 2 s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-8440/Z 092029 Y7-92029 EATON ELECTRIC Multi-speed switches, Contacts: 8, 63 A, One tapped winding, 2 s..

T5B-4-8440/Z

092029

Y7-92029

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 8, 63 A, One tapped winding, 2 speeds, front plate: 0-1-2, 60 °, maintained, rear mounting Multi-speed switch 8 poles 63 A 1 threaded winding 2 Eaton Moeller® series T5B Multi-speed switches, T5B, 63 A, rear mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 0-1-2, Design number 8440

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Eaton Moeller, the T5B-4-8440/Z multi-speed switch provides robust speed selection capabilities for industrial electric motors. Engineers utilize multi-speed switches to alternate motor windings and adjust operational velocities in heavy-duty ventilation systems. Rear-mounted architecture supports secure industrial enclosure installation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T5B-4-8440/Z
  • Catalogue code: 092029
  • Catalogue title: T5B-4-8440/Z 092029 Y7-92029 EATON ELECTRIC Multi-speed switches, Contacts: 8, 63 A, One tapped winding, 2 s..
  • Product description: General specifications Product Name Eaton Moeller® series T5B Multi-speed switch Catalog Number 092029 Model Code T5B-4-8440/Z EAN 4015080920298 Product Length/Depth 182 mm Product Height 88 mm Product Width 88 mm Produc
  • Manufacturer summary: Multi-speed switches, Contacts: 8, 63 A, One tapped winding, 2 speeds, front plate: 0-1-2, 60 °, maintained, rear mounting Multi-speed switch 8 poles 63 A 1 threaded winding 2 Eaton Moeller® series T5B Multi-speed switch

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Multi-speed switch
Catalog Number
092029
Model Code
T5B-4-8440/Z
EAN
4015080920298
Product Length/Depth
182 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.769 kg
Certifications
UL 60947-4-1
CE
IEC/EN 60204
IEC/EN 60947
UL File No.: E36332
CSA
CSA File No.: 012528
CSA-C22.2 No. 94
CSA Class No.: 3211-05
UL
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
VDE 0660
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
