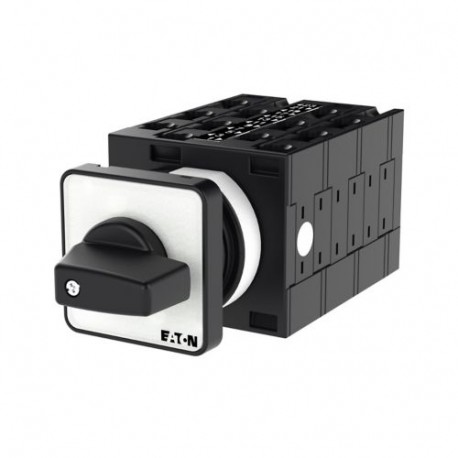

T3-6-8362/E 090313 Y7-90313 EATON ELECTRIC Changeoverswitches, Contacts: 12, 32 A, front plate: 1-0-2, 60 °,..
T3-6-8362/E
090313
Y7-90313
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Routing complex electrical signals and controlling high-capacity circuits is efficiently handled by the Eaton Moeller T3-6-8362/E changeover switch. These multi-pole rotary switches are widely deployed in manufacturing plants for secure power distribution and switching tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 6
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
CSA File No.: 012528
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
UL 60947-4-1
CSA
CSA Class No.: 3211-05
UL
IEC/EN 60947
UL Category Control No.: NLRV
UL File No.: E36332
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
