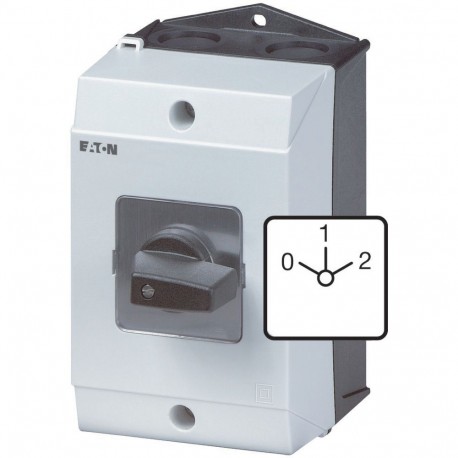

EATON - MOELLER T3-4-8441/I2 T3-4-8441/I2 207197 Y7-207197 EATON ELECTRIC Multi-speed switches, Contacts: 8, 32 A, One tapped winding, 2 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-4-8441/I2 207197 Y7-207197 EATON ELECTRIC Multi-speed switches, Contacts: 8, 32 A, One tapped winding, 2 ..

T3-4-8441/I2

207197

Y7-207197

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 8, 32 A, One tapped winding, 2 speeds, front plate: 1-0-2, 60 °, maintained, surface mounting T3-4-8441/I2 Eaton Moeller® series T3 Multi-speed switches, T3, 32 A, surface mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8441 Multi-speed switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 8, Degree of Protection: IP65, Design: surface mounting, switching function: One tapped winding, 2 speeds, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller Dahlander switch, part number T3-4-8441/I2, is an engineered multi-speed switching device utilized to govern two-speed, single-winding electric motors in industrial automation systems. This switch ensures precise speed selection and operational safety for complex mechanical equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Dahlander switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Multi-speed switch
Catalog Number
207197
Model Code
T3-4-8441/I2
EAN
4015082071974
Product Length/Depth
181 mm
Product Height
127 mm
Product Width
100 mm
Product Weight
0.594 kg
Certifications
CE
IEC/EN 60947
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA
UL File No.: E36332
IEC/EN 60947-3
VDE 0660
CSA File No.: 012528
UL Category Control No.: NLRV
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
