T3-4-8441/E 042879 Y7-42879 EATON ELECTRIC Multi-speed switches, Contacts: 8, 32 A, One tapped winding, 2 sp..
T3-4-8441/E
042879
Y7-42879
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

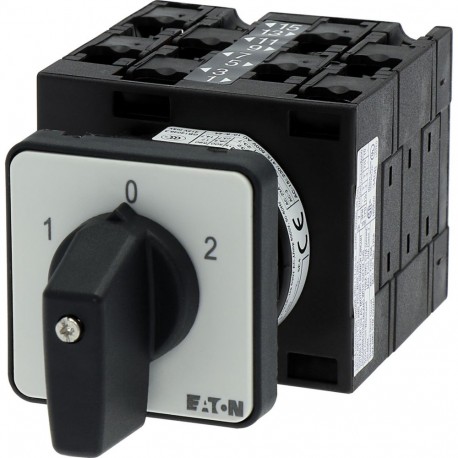

This T3-4-8441/E Eaton Moeller Dahlander switch is a specialized multi-speed motor controller designed to alternate pole connections for two-speed operation of squirrel-cage motors. Such switches are standard in heavy-duty ventilation, pumping, and mechanical drive systems requiring flexible operating speeds.
Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Dahlander switch
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
IEC/EN 60947
UL
CSA Class No.: 3211-05
UL 60947-4-1
UL Category Control No.: NLRV
CSA-C22.2 No. 94
IEC/EN 60204
CE
CSA File No.: 012528
UL File No.: E36332
CSA
IEC/EN 60947-3
VDE 0660
