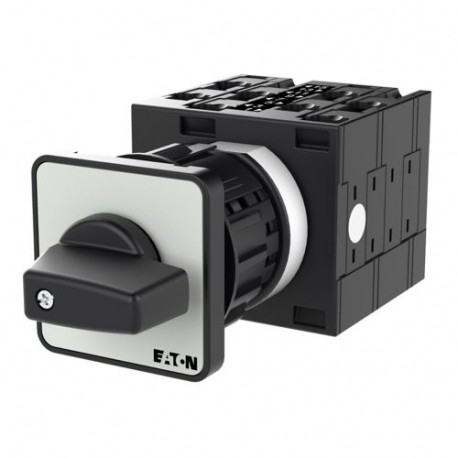

T3-4-8440/EZ 000959 Y7-959 EATON ELECTRIC Multi-speed switches, Contacts: 8, 32 A, One tapped winding, 2 spe..
T3-4-8440/EZ
000959
Y7-959
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for controlling multi-speed electric motors, the Eaton Moeller T3-4-8440/EZ multi-speed switch provides secure manual transitions between different operational speeds in industrial machinery. Technicians utilize such switches to regulate motor windings efficiently within control enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Dahlander switch
- Number of poles: 3
- With zero (off) position: Yes
- With retraction in 0-position: No
- Rated permanent current Iu: 32 A
- Rated operation current Ie at AC-3, 400 V: 23.7 A
- Rated operation power at AC-3, 400 V: 12 kW
- Degree of protection (IP), front side: IP65
- Degree of protection (NEMA), front side: 12
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Complete device in housing: No
- Housing material: Plastic
- Type of control element: Short thumb-grip
More info
▲General specifications
UL 60947-4-1
IEC/EN 60204
UL
CSA
CSA-C22.2 No. 60947-4-1-14
VDE 0660
UL File No.: E36332
CSA-C22.2 No. 94
CE
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CSA File No.: 012528
IEC/EN 60947-3
