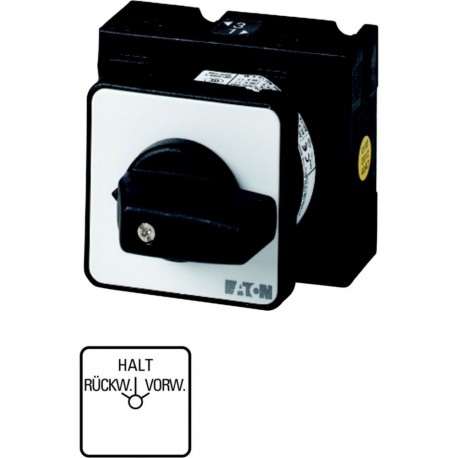

EATON - MOELLER T3-3-8622/E T3-3-8622/E 020034 Y7-20034 EATON ELECTRIC Reversing switches, Contacts: 6, 32 A, front plate: Rückwärts-Hal.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8622/E 020034 Y7-20034 EATON ELECTRIC Reversing switches, Contacts: 6, 32 A, front plate: Rückwärts-Hal..

T3-3-8622/E

020034

Y7-20034

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 6, 32 A, front plate: Rückwärts-Halt-Vorwärts, 45 °, maintained, flush mounting, SOND 27 6-pole inverter switch 32 A Indicator plate: Eaton Moeller® series T3 Reversing switches, T3, 32 A, flush mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With STOP position, Rückwärts-Halt-Vorwärts, SOND 27, Design number 8622 Reversing switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Notes: SOND 27, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With STOP position, front plate: Rückwärts-Halt-Vorwärts, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-3-8622/E is a reversing switch engineered to alter the rotational direction of electric motors in industrial systems. Reversing switches are essential components for conveyor systems, automated machinery, and dynamic production lines requiring bidirectional mechanical movement.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reversing switch
  • Number of poles: 2
  • With zero (off) position: No
  • With retraction in 0-position: No
  • Rated permanent current Iu: 32 A
  • Rated operation current Ie at AC-3, 400 V: 23.7 A
  • Rated operation power at AC-3, 400 V: 12 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing switch
Catalog Number
020034
Model Code
T3-3-8622/E
EAN
4015080200345
Product Length/Depth
102 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.212 kg
Certifications
UL 60947-4-1
VDE 0660
IEC/EN 60204
CE
IEC/EN 60947-3
CSA File No.: 012528
UL
UL File No.: E36332
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
CSA
CSA Class No.: 3211-05
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
