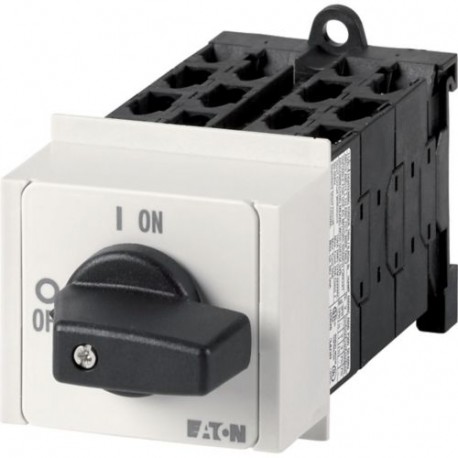

EATON - MOELLER T0-6-15866/IVS T0-6-15866/IVS 036477 Y7-36477 EATON ELECTRIC Reversing multi-speed switch, contacts: 12, 20 A, 2 speeds, 2 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-6-15866/IVS 036477 Y7-36477 EATON ELECTRIC Reversing multi-speed switch, contacts: 12, 20 A, 2 speeds, 2 ..

T0-6-15866/IVS

036477

Y7-36477

EATON - MOELLER

1 Pcs.

Reversing multi-speed switch, contacts: 12, 20 A, 2 speeds, 2 rotation directions,Dahlander,front plate:2-1-0-1-2, 60°,maintained,distr.board mounting Multi-speed switch with 12-pole reversing 20 A 2 speeds Eaton Moeller® series T0 Reversing multi-speed switches, T0, 20 A, service distribution board mounting, 6 contact unit(s), Contacts: 12, 60 °, maintained, With 0 (Off) position, 2-1-0-1-2, Design number 15866 Reversing multi-speed switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 12, Degree of Protection: Front IP30, Design: service distribution board mounting, switching function: 2 speeds, 2 operating directions, One tapped winding, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-1-0-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Facilitating both speed changes and directional shifts, the Eaton Moeller T0-6-15866/IVS reversing multi-speed switch serves complex drive systems. Technicians install this unit in distribution boards to control multi-winding motors with precision and safety.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reversing Dahlander switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW
  • Degree of protection (IP), front side (EF003118): IP30
  • Degree of protection (NEMA), front side (EF011961): 2
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Reversing multi-speed switch
Catalog Number
036477
Model Code
T0-6-15866/IVS
EAN
4015080364771
Product Length/Depth
130 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.229 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL File No.: E36332
CE
UL
CSA-C22.2 No. 94
VDE 0660
CSA
IEC/EN 60947
UL Category Control No.: NLRV
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947-3
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
