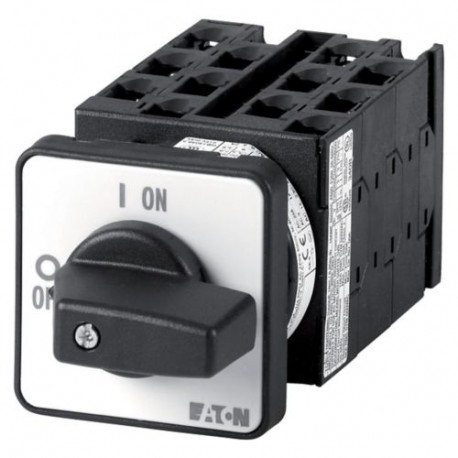

T0-6-154/E 015429 Y7-15429 EATON ELECTRIC Multi-speed switches, Contacts: 12, 20 A, 2 speeds, 2 separate win..
T0-6-154/E
015429
Y7-15429
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller multi-speed switch, part number T0-6-154/E, is engineered for electrical systems requiring selective speed adjustments for multi-winding motors. These rotary devices allow operators to safely shift operating speeds across industrial machinery and automated ventilation systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Pole switch
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 20 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
- Rated operation power at AC-3, 400 V (EF001364): 4 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
VDE 0660
IEC/EN 60947-3
UL
IEC/EN 60204
CE
CSA
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60947
CSA Class No.: 3211-05
UL Category Control No.: NLRV
CSA File No.: 012528
UL File No.: E36332
