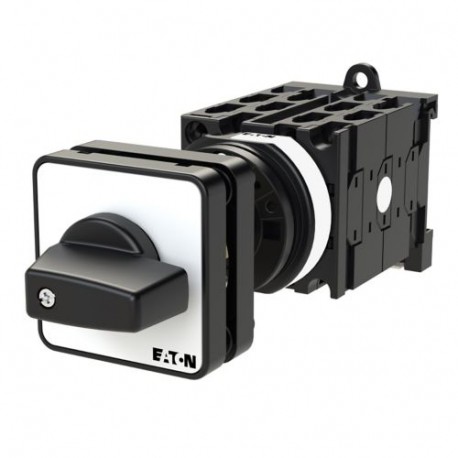

EATON - MOELLER T0-5-15876/Z T0-5-15876/Z 000942 Y7-942 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 20 A, front plate: D-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15876/Z 000942 Y7-942 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 20 A, front plate: D-..

T0-5-15876/Z

000942

Y7-942

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 10, 20 A, front plate: D-Y-0-Y-D, 60 °, maintained, rear mounting Star-Triangle Switch with 10-Pole Reversal 20 A Plate Eaton Moeller® series T0 Reversing star-delta switches, T0, 20 A, rear mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15876 Turnaround star-delta switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-5-15876/Z reversing star-delta switch is tailored for managing multi-stage motor transitions to minimize electrical stress during startup phases. These specialized switches are commonly employed in heavy motor control centers to regulate high-power machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Turnaround star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Turnaround star-delta switch
Catalog Number
000942
Model Code
T0-5-15876/Z
EAN
4015080009429
Product Length/Depth
156 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.211 kg
Certifications
CSA File No.: 012528
IEC/EN 60204
IEC/EN 60947
CSA
CSA-C22.2 No. 94
UL 60947-4-1
IEC/EN 60947-3
CE
CSA Class No.: 3211-05
UL
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
