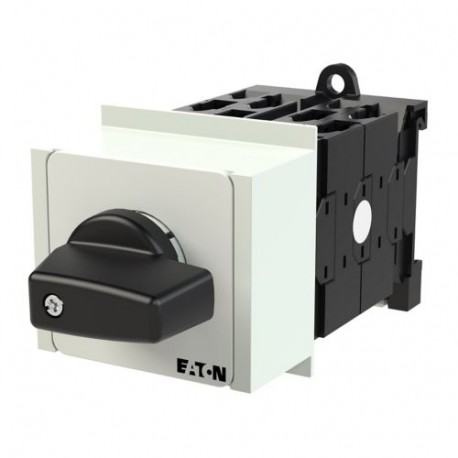

EATON - MOELLER T0-5-15876/IVS T0-5-15876/IVS 000902 Y7-902 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 20 A, front plate: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15876/IVS 000902 Y7-902 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 20 A, front plate: ..

T0-5-15876/IVS

000902

Y7-902

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 10, 20 A, front plate: D-Y-0-Y-D, 60 °, maintained, service distribution board mounting Star-Triangle Switch with 10-Pole Reversal 20 A Plate Eaton Moeller® series T0 Reversing star-delta switches, T0, 20 A, service distribution board mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15876 Turnaround star-delta switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller reversing star-delta switch, part number T0-5-15876/IVS, provides smooth startup control for heavy induction motors by limiting initial inrush currents. Star-delta switches are standard electrical components deployed in industrial setups to transition motors from star to delta configurations safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Turnaround star-delta switch
  • Number of poles: 3
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 20 A
  • Rated operation current Ie at AC-3, 400 V: 11.5 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Degree of protection (IP), front side: IP30
  • Degree of protection (NEMA), front side: 2
  • Suitable for floor mounting: Yes
  • Suitable for distribution board installation: Yes
  • Suitable for front mounting: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Turnaround star-delta switch
Catalog Number
000902
Model Code
T0-5-15876/IVS
EAN
4015080009023
Product Length/Depth
120 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.205 kg
Certifications
UL 60947-4-1
CSA-C22.2 No. 60947-4-1-14
CE
CSA File No.: 012528
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60204
VDE 0660
CSA
IEC/EN 60947-3
UL File No.: E36332
UL Category Control No.: NLRV
UL
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
