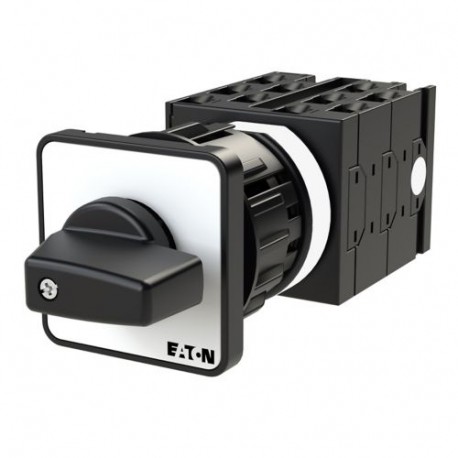

EATON - MOELLER T0-5-15876/EZ T0-5-15876/EZ 000900 Y7-900 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 20 A, front plate: D.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15876/EZ 000900 Y7-900 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 20 A, front plate: D..

T0-5-15876/EZ

000900

Y7-900

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 10, 20 A, front plate: D-Y-0-Y-D, 60 °, maintained, centre mounting Star-Triangle Switch with 10-Pole Reversal 20 A Plate Eaton Moeller® series T0 Reversing star-delta switches, T0, 20 A, center mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15876 Turnaround star-delta switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T0-5-15876/EZ is a reversing star-delta switch designed for controlling and changing the rotation direction of multi-phase electric motors in industrial applications. Reversing star-delta switches provide safe, manual transition between star and delta operational phases to reduce starting current surges in heavy machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Turnaround star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Turnaround star-delta switch
Catalog Number
000900
Model Code
T0-5-15876/EZ
EAN
4015080009009
Product Length/Depth
134 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.201 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA
IEC/EN 60204
UL
UL File No.: E36332
IEC/EN 60947
CSA Class No.: 3211-05
CE
CSA-C22.2 No. 94
VDE 0660
CSA File No.: 012528
UL Category Control No.: NLRV
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
