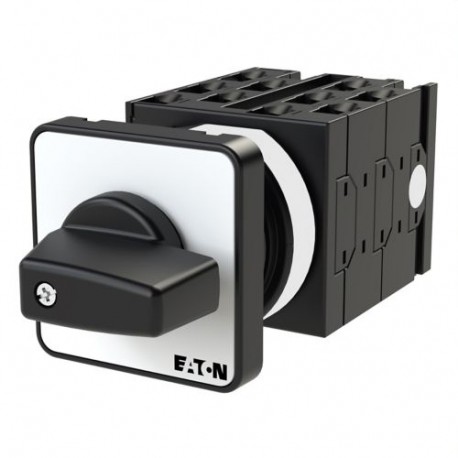

EATON - MOELLER T0-5-15876/E T0-5-15876/E 000893 Y7-893 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 20 A, front plate: D-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-5-15876/E 000893 Y7-893 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 20 A, front plate: D-..

T0-5-15876/E

000893

Y7-893

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 10, 20 A, front plate: D-Y-0-Y-D, 60 °, maintained, flush mounting Star-Triangle switch with inversion. 10 poles. 20 A. Plate Eaton Moeller® series T0 Reversing star-delta switches, T0, 20 A, flush mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15876 Turnaround star-delta switch, Product range: Control switches, Part group reference: T0, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T0-5-15876/E is a reversing star-delta switch designed for secure manual motor control and direction changes in industrial machinery setups. These manual switching devices safely route electrical currents to manage startup profiles and operational states in complex automation configurations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Turnaround star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 11.5 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Turnaround star-delta switch
Catalog Number
000893
Model Code
T0-5-15876/E
EAN
4015080008934
Product Length/Depth
114 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.147 kg
Certifications
IEC/EN 60204
UL
CSA-C22.2 No. 60947-4-1-14
CSA
CE
VDE 0660
IEC/EN 60947
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA-C22.2 No. 94
CSA File No.: 012528
UL File No.: E36332
UL Category Control No.: NLRV
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
