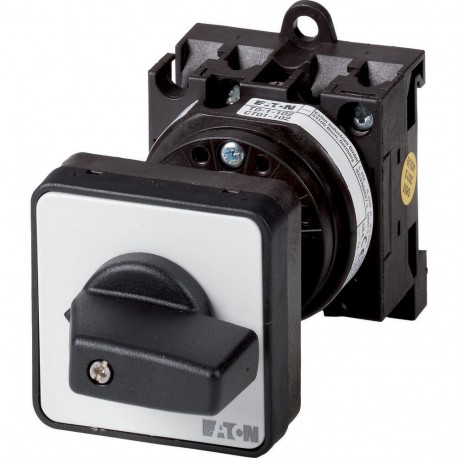

T0-4-SOND*/Z 907842 Y7-907842 EATON ELECTRIC Non-standard switch, T0, 20 A, rear mounting, 4 contact unit(s)
T0-4-SOND*/Z
907842
Y7-907842
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A non-standard switch, T0, 20 A, rear mounting, 4 contact unit(s) like the Eaton Moeller T0-4-SOND*/Z is utilized for manual control, circuit disconnection, and load switching in industrial control panels. These control switches safely route power through multiple circuits and provide reliable local operation for machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60947-3
IEC/EN 60204
VDE 0660
