> EATON - MOELLER > Disconnectors and Cam Switches > 093428

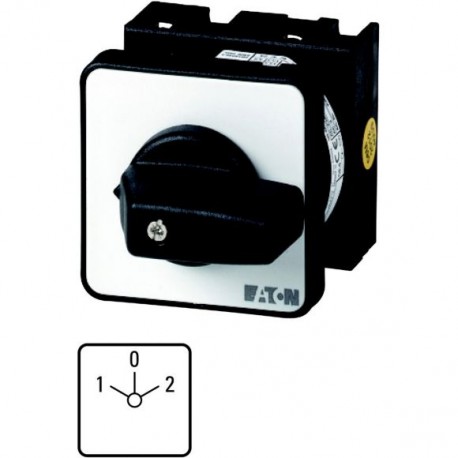

EATON - MOELLER T0-4-8441/EZ T0-4-8441/EZ 093428 Y7-93428 EATON ELECTRIC Multi-speed switches, Contacts: 8, 20 A, One tapped winding, 2 s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-4-8441/EZ 093428 Y7-93428 EATON ELECTRIC Multi-speed switches, Contacts: 8, 20 A, One tapped winding, 2 s..

T0-4-8441/EZ

093428

Y7-93428

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 8, 20 A, One tapped winding, 2 speeds, front plate: 1-0-2, 60 °, maintained, centre mounting Multi-speed switch 8 poles 20 A 1 threaded winding 2 Eaton Moeller® series T0 Multi-speed switches, T0, 20 A, centre mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8441

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 Multi-speed switch
Catalog Number
093428
Model Code
T0-4-8441/EZ
EAN
4015080934288
Product Length/Depth
125 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.177 kg
Certifications
CSA Class No.: 3211-05
IEC/EN 60947
UL File No.: E36332
VDE 0660
CE
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA
IEC/EN 60947-3
IEC/EN 60204
UL
CSA-C22.2 No. 94
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
