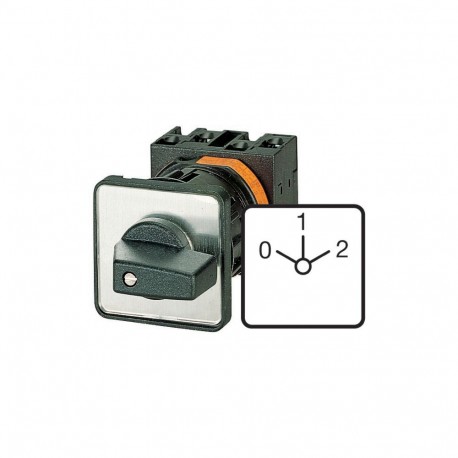

EATON - MOELLER T5B-3-8451/E T5B-3-8451/E 092288 Y7-92288 EATON ELECTRIC Changeoverswitches, Contacts: 6, 63 A, front plate: 0-1-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-3-8451/E 092288 Y7-92288 EATON ELECTRIC Changeoverswitches, Contacts: 6, 63 A, front plate: 0-1-2, 60 °,..

T5B-3-8451/E

092288

Y7-92288

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 63 A, front plate: 0-1-2, 60 °, maintained, flush mounting Switch Switch 6 poles 63 A Indicator plate: 0-1-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, flush mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, 0-1-2, Design number 8451 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5B-3-8451/E changeoverswitches serve as manual switching devices for safely routing electrical power across complex industrial circuit configurations. Technicians rely on these components to manage source transitions and equipment paths in heavy-duty control panels.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
092288
Model Code
T5B-3-8451/E
EAN
4015080922889
Product Length/Depth
124 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.59 kg
Certifications
IEC/EN 60204
VDE 0660
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 94
IEC/EN 60947
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947-3
CE
UL Category Control No.: NLRV
UL 60947-4-1
UL
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
