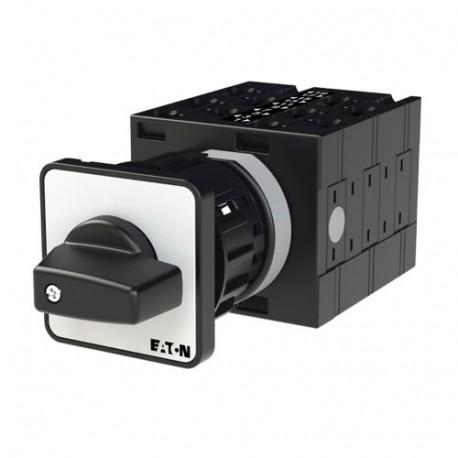

EATON - MOELLER T3-5-15876/EZ T3-5-15876/EZ 000797 Y7-797 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 32 A, front plate: D.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-15876/EZ 000797 Y7-797 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 32 A, front plate: D..

T3-5-15876/EZ

000797

Y7-797

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 10, 32 A, front plate: D-Y-0-Y-D, 60 °, maintained, centre mounting Star-Triangle Switch with 10-Pole Reversal 32 A Plate Reversing star-delta switches, T3, 32 A, center mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15876 Turnaround star-delta switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for heavy-duty motor control applications, the Eaton Moeller reversing star-delta switch (part number T3-5-15876/EZ) facilitates safe and efficient startup transitions for high-power three-phase electric motors. Industrial operators rely on these switches to reduce starting current surges in complex manufacturing machinery and heavy equipment drives.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Turnaround star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Turnaround star-delta switch
Catalog Number
000797
Model Code
T3-5-15876/EZ
EAN
4015080007975
Product Length/Depth
147 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.32 kg
Certifications
CE
VDE 0660
UL 60947-4-1
UL
CSA
CSA-C22.2 No. 94
CSA File No.: 012528
CSA Class No.: 3211-05
IEC/EN 60947
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
