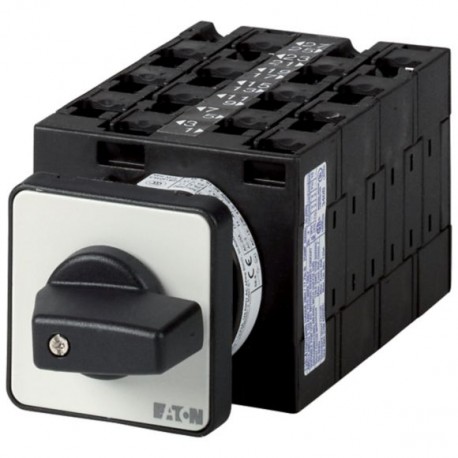

EATON - MOELLER T3-7-68/E T3-7-68/E 005531 Y7-5531 EATON ELECTRIC Reversing multi-speed switches, Contacts: 13, 32 A, One tapped windi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-7-68/E 005531 Y7-5531 EATON ELECTRIC Reversing multi-speed switches, Contacts: 13, 32 A, One tapped windi..

T3-7-68/E

005531

Y7-5531

EATON - MOELLER

1 Pcs.

Reversing multi-speed switches, Contacts: 13, 32 A, One tapped winding, 2 speeds, front plate: 2-1-0-1-2, 60 °, maintained, flush mounting, SOND 30 Switch Multi-speed with reverse; 13-pole; 32; 1 winding threading; 2 speeds; rating Plate: 2-1-0-1-2; 60 °; Interlock; recessed Mounting; SOND 30 Eaton Moeller® series T3 Reversing multi-speed switches, T3, 32 A, flush mounting, 7 contact unit(s), Contacts: 13, 60 °, maintained, With 0 (Off) position, 2-1-0-1-2, SOND 30, Design number 68 Reversing multi-speed switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Notes: SOND 30, Contacts: 13, Degree of Protection: Front IP65, Design: flush mounting, switching function: One tapped winding, 2 speeds, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-1-0-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 7 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-7-68/E reversing multi-speed switch provides precise manual control over multi-winding motors, allowing operators to alter speeds and operational directions. This component category is essential in complex industrial automation setups requiring versatile motor behavior. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reversing Dahlander switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing multi-speed switch
Catalog Number
005531
Model Code
T3-7-68/E
EAN
4015080055310
Product Length/Depth
148 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.372 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
UL
UL Category Control No.: NLRV
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA Class No.: 3211-05
CE
CSA
UL File No.: E36332
CSA-C22.2 No. 94
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
