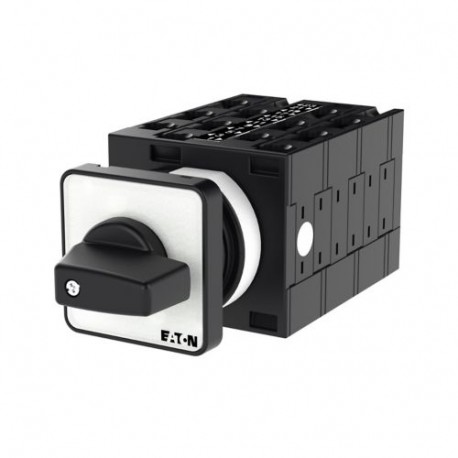

T3-6-66/E 004373 Y7-4373 EATON ELECTRIC Reversing multi-speed switches, Contacts: 12, 32 A, One tapped windi..
T3-6-66/E
004373
Y7-4373
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Reversing multi-speed switch T3-6-66/E by Eaton Moeller is a robust electrical control device engineered to manage motor winding selections and rotational direction changes within industrial systems. Engineers deploy these multi-pole switches to safely coordinate complex sequential motor operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reversing Dahlander switch
- Number of poles (EF001391): 3
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA File No.: 012528
VDE 0660
CSA
UL
UL File No.: E36332
CE
CSA-C22.2 No. 94
UL 60947-4-1
